產品描述

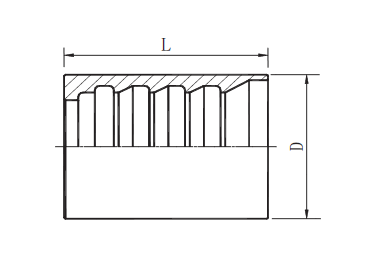

| 訂貨號 | 軟 管 | 尺 寸 |
| 公稱內徑 | 標號 | L | D |
| 4SN06T | 10 | 06 | 39 | 25.5 |
| 4SN08T | 12 | 08 | 41 | 29 |
| 4SN10T | 16 | 10 | 43 | 32.5 |
| 4SN12T | 19 | 12 | 51 | 37 |
| 4SN16T | 25 | 16 | 61.5 | 46.5 |
| 4SN20T | 32 | 20 | 67.5 | 53 |
| 4SN24T | 40 | 24 | 75 | 61 |
| 4SN32T | 50 | 32 | 79 | 77 |
*適用SAE及DIN標準四層鋼絲編織或纏繞橡膠管
